| TYPES on THIS PAGE | MANUFACTURERS |
|
BNC TNC MUSA N Type SMA Twinax UHF - see also BNC Twin UHF |
Greenpar General Radio Pye Radiall |
Note that most items are now between 30 and 70 years old.
Some tarnishing of contacts may have occurred. I can advise on the detailed condition of specific items on request
|
Cat No. |
Click Pics |
Description |
Condition |
Price GBP |
| COAXIAL CONNECTORS | ||||
| UHF | ||||
| CON2362 |
 |

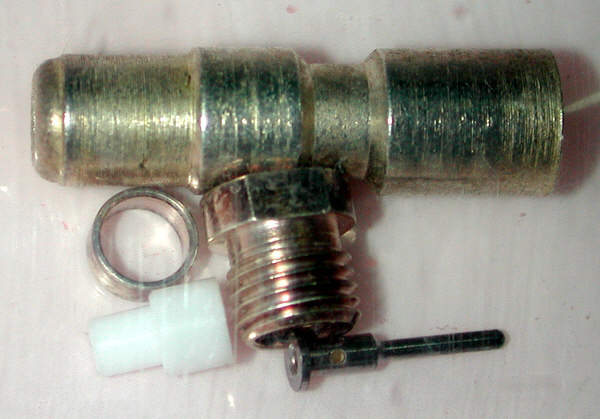

UHF Elbow Connector - Greenpar 40023SC10. Silver plated. for group 10 cables - URM43, URM76, RG58C/U, 141A/U, 142B/U, BICC T3010, Davu 5604. Unopened bags.

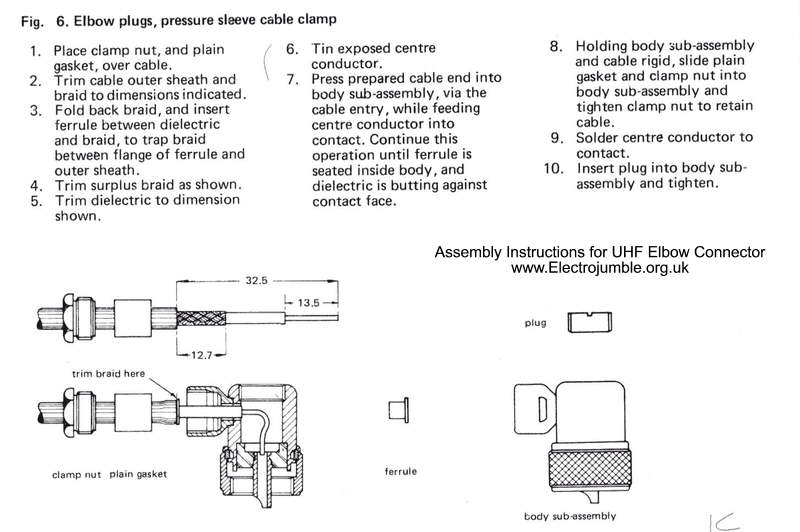

← See Instructions for assembly. |
New | 8.50 |
| CON2364 |
 |

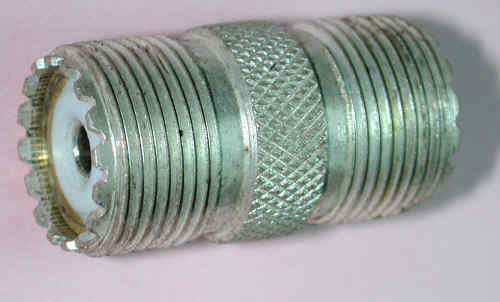

UHF 50 ohm Female-Female Coupler. |
Used/Unused | 3.90 |
| CON2365 |
 |

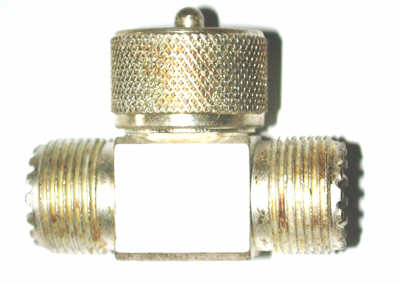

UHF 50 ohm Tee. | New old stock | 2.80 |
| CON2366 |
 |

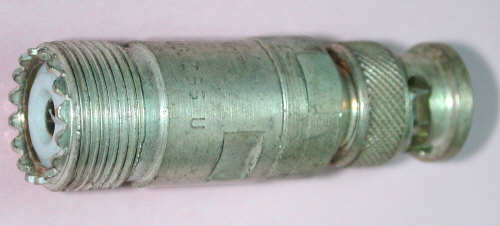

UHF 50 ohm Female to BNC Male adaptor UG255/U | Used/Unused | 3.90 |
| CON2367 |
 |

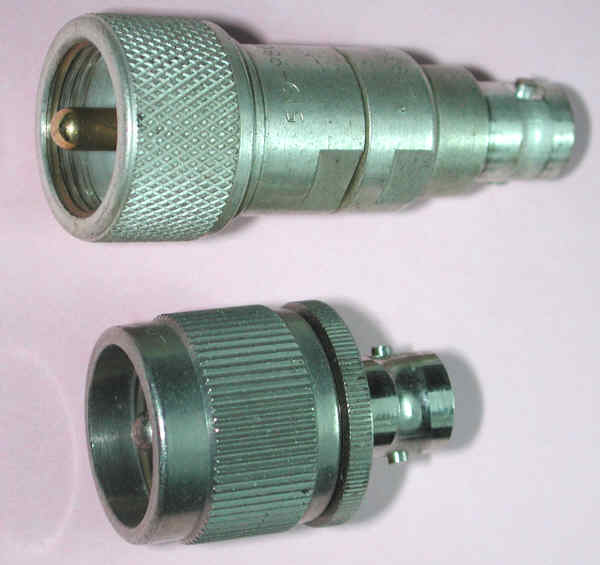

UHF 50 ohm Male to BNC Female adaptor UG273/U Short are nickel plated, long are silver plated. As available |
Used/Unused | 3.90 |
| CON2368 |
 |

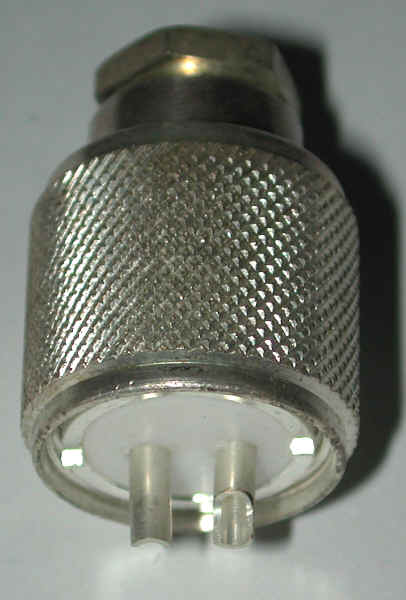

Twinax Free Plug.
Greenpar. For screened balance line use. ("UHF" style) With 2.3mm diameter, 6mm long contacts. |
New old stock | 1.80 |
| CON2369 |
 |
Twinax Fixed Socket. Greenpar. For screened balance line use. ("UHF" style) | New old stock | 1.80 |
| N TYPE | ||||
| CON2422 | . |
DC Isolator Microlab HR12N HR-12N.
N male to female. 5985-00-738-6747 1 to 6 GHz, 50W <1kV, <0.2dB loss. |
Used | 19.00 |
| CON2423 | . | DC Isolator Microlab HR52N HR-52N. N male to female. | Used | 19.00 |
| CON2424 | . | Microlab HS10N HS-10N. N male to female. | Used | 19.00 |
| CON2483 |  |
N Connector Fixed Male Socket. 25mm square, holes on 18mm centres. | Ex Equip. | 0.80 |
| CON2484 |  |

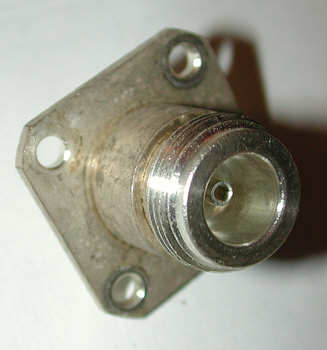

N Connector Fixed Female Plug. 25mm square, holes on 18mm centres. | Ex Equip. | 1.60 |
| CON2485 |  |

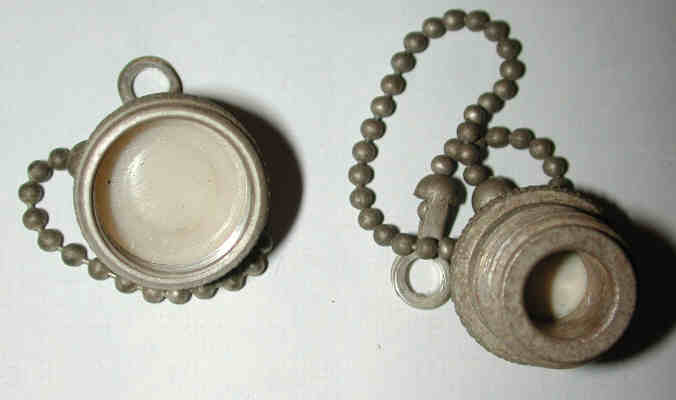

Captive Covers for the above N Connectors. State whether for plug or socket | Ex Equip. | 0.20 |
| CON2486 |
 |

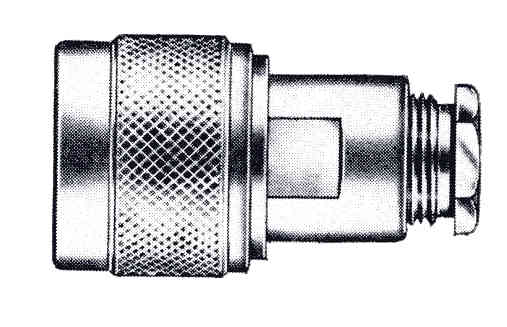

N 50 ohm Connector Free Male. Silver plated. for group 10 cables - URM43, URM76, RG58C/U, 141A/U, 142B/U, BICC T3010, Davu 5604. | New | 7.50 |
| CON2487 |
 |

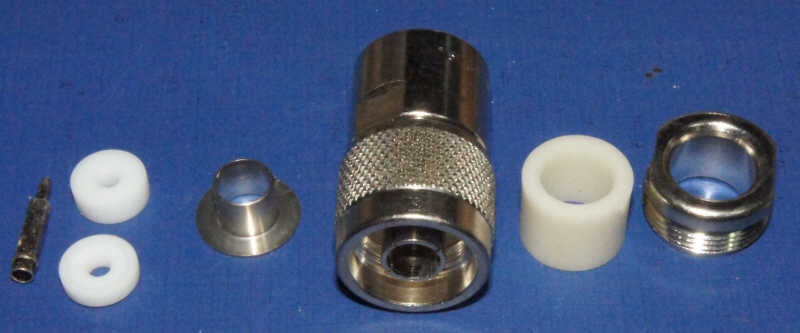

N 50 ohm Connector Free Male.
Nickel plated. Cable inlet 11mm diameter NSN 99-740-5209 |
New | 7.50 |
| CON2489 |
 |

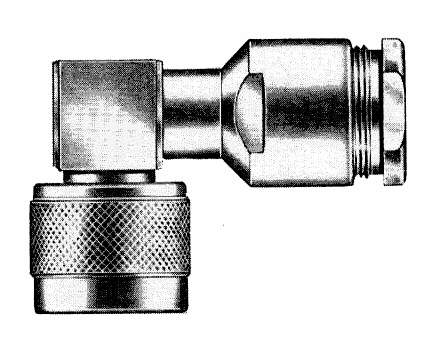

N Elbow 50 ohm Connector Free Male. Greenpar Silver plated. for group 10 cables - URM43, URM76, RG58C/U, 141A/U, 142B/U, BICC T3010, Davu 5604. Unopened bags. | New | 9.50 |
| CON2503 | . |
BNC Free Plug 50 ohm Crimp UG 1785
Coline 125-01-010, Farnell 143-776 or RS456-352 |
New Bagged | 1.75 |

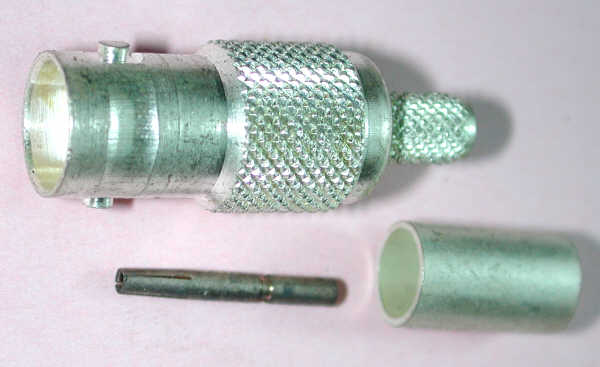

| CON2504 |
 |
BNC Free Socket 50 ohm Crimp | New Bagged | 1.75 |
| CON2507 |
 |

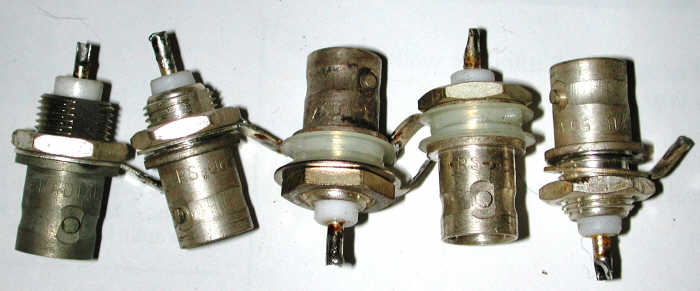

BNC 50 ohms chassis Sockets.
Various types ex equipment.
Some with insulators and solder tags. |
Used | 0.20 ea or 10 for 1.70 |
| CON2508 |
 |

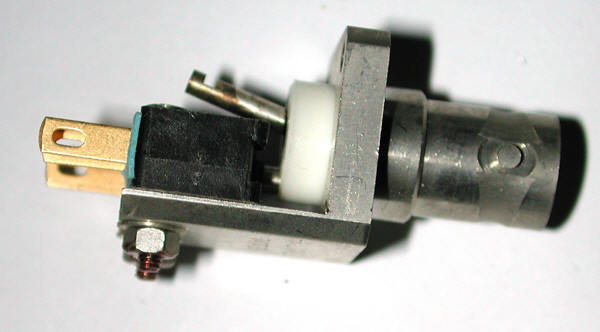

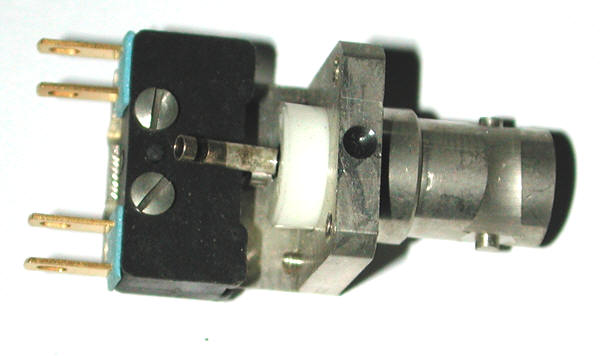

BNC 50 ohms chassis Socket with switch.
Radiall
141439.
Insertion of Free connector operates switch with one make and one break switch.
17mm square flange with tapped holes at 12.5mm centres. |
New | 9.50 |
| CON2509 |
 |
BNC 50 ohms Insulated chassis Socket. RS type 456-706 | Used | 0.24 or 10 for 2.00 |
| CON2510 |
 |

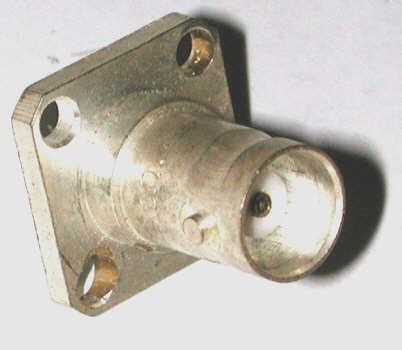

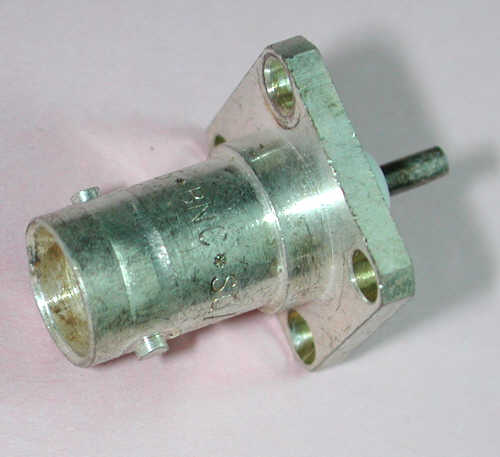

BNC 50 ohms, square flange. RS 455-810 or equivalent |
New old stock Used clean |
1.50 0.35 |

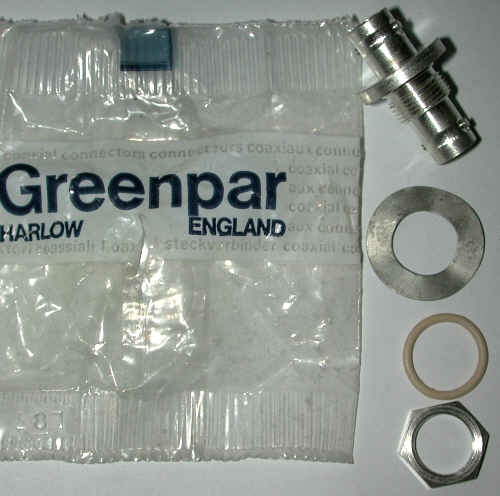

| CON2534 |  |
BNC Panel Feed-Through. 75 ohm Greenpar. Can also be used as a line coupler | New old stock | 0.70 |

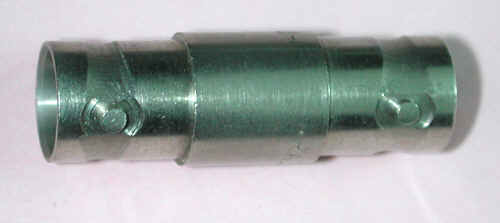

| CON2535 |
 |
BNC 50 ohms Coupler Socket-Socket. Radiall UG-914/U or G35034 or equivalent. Joins two BNC cables with plugs. | Used Unused |
0.50 0.80 |
| CON2536 |  |
BNC 50 ohms T pieces. RS 405-073 Jack/Jack/Plug Adaptor, Radiall 141780 UG274 B/U or equivalent. | Used Unused |
0.70 1.00 |
| CON2541 |
 |

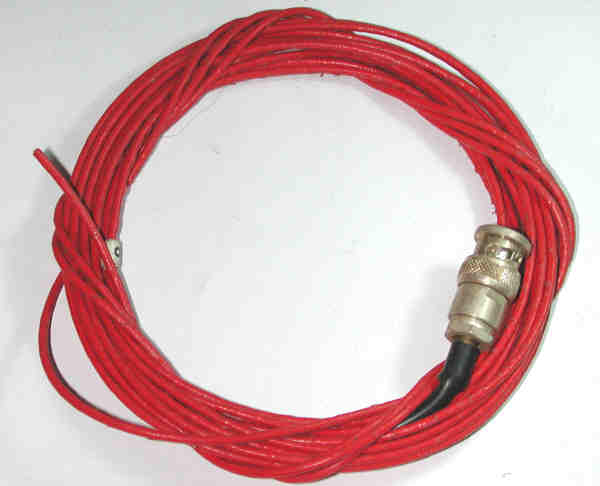

BNC Lead with miniature cable. BNC at one end only. PTFE cable 2.1mm diameter approximately. Red or blue supplied - 2m long approx. |
Ex Lab | 3.50 |
| CON2542 |
 |

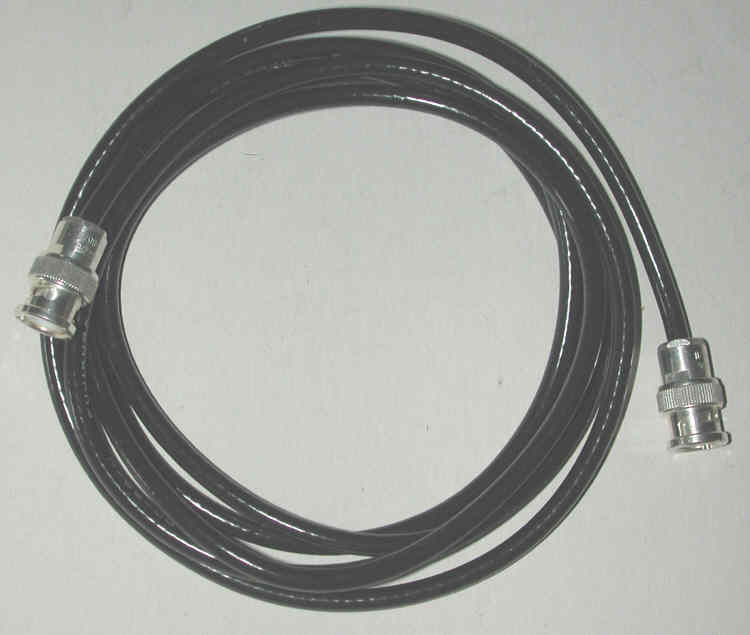

BNC Lead 50 ohm, 2m length. Unused | New | 1.10 |
| CON2543 |
 |

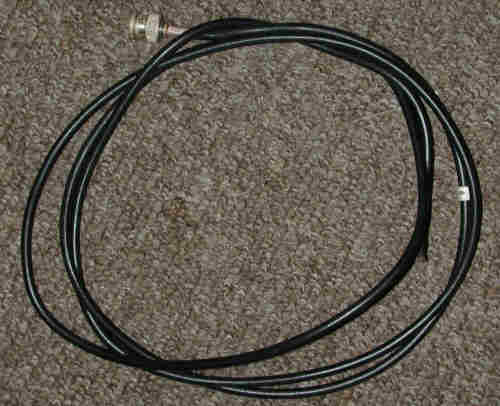

BNC Lead 50 ohm, 2m approximate length.
Single Connector other end not terminated. |
Ex Lab | 0.35 |
| CON2545 | . | BNC to BNC Leads. 50 and 75 ohm, various lengths. | Ex Lab | From 0.60 |
| CON2561 |
 |

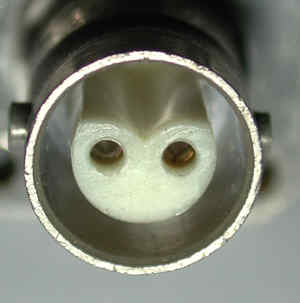

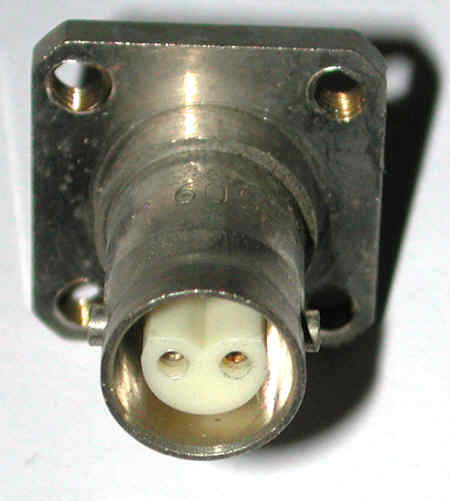

Twin BNC (Twinax) - Radiall 605400
 |
Used | 0.30 or
4 for 1.00 |
| CON2581 |
 |

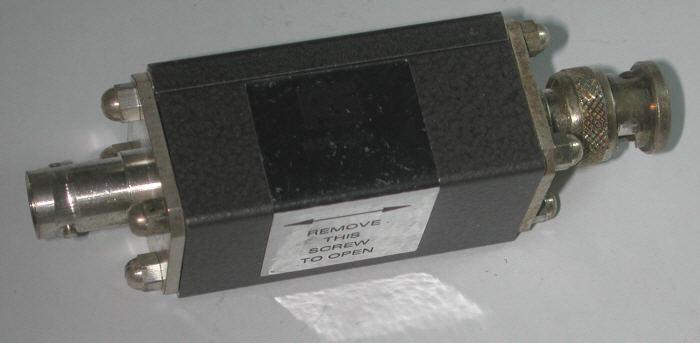

BNC to BNC box RS 456-201
for filters, attenuators etc. 25mm square by 55mm long, 93mm overall. One only remaining. A few used, clean at 3.80 GBP. |
New Old stock |
5.00 |
| CON2583 | Similar to CON2581 |
BNC male to BNC female box
for filters, attenuators etc. 30 x 20mm by 80 mm long, 108mm overall. |
New Old stock |
5.00 |
|
OTHER COAXIAL TYPES including Military Connectors |
||||
| CON2615 |
 |

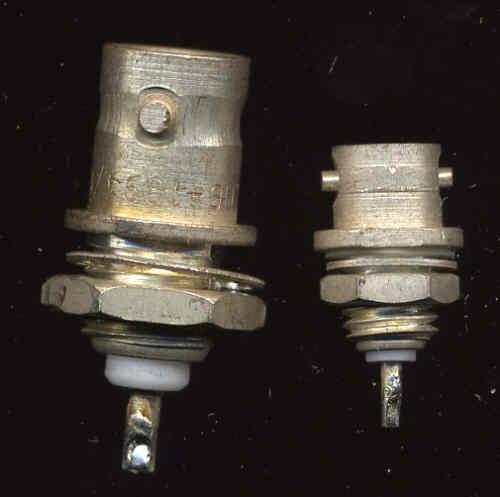

Miniature BNC 50 ohms chassis Socket RS type 455-703
(455703). Sealed packets. Silver plated with sealing ring, washer and nut. Body 7mm diameter, flange 10mm with flat. Picture shows a used sample alongside a standard BNC. (RS price 7.30 plus tax) |
New | 3.20 |

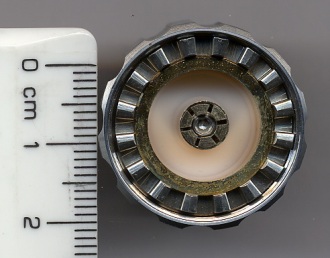

| CON2620 |
 |

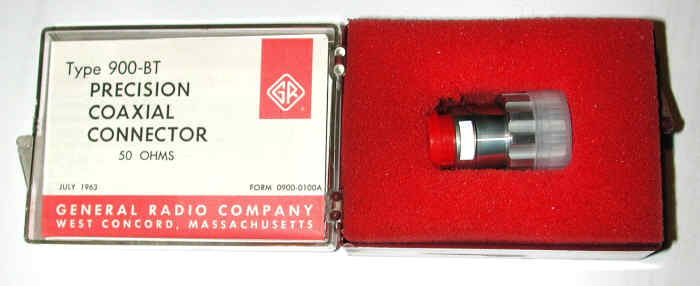

GR 900BT Precision Coaxial Connector. 50 ohm. Other types available.
General Radio boxed |
New old stock | 14.00 |
| CON2711 |
 |

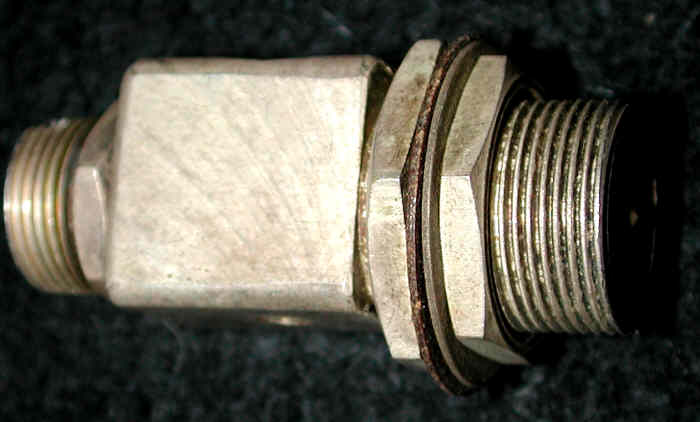

Coaxial Fixed Socket (Male)
Burndept As used on Racal receivers such as the Racal RA17 series. One only |
New old stock | 22.00 |

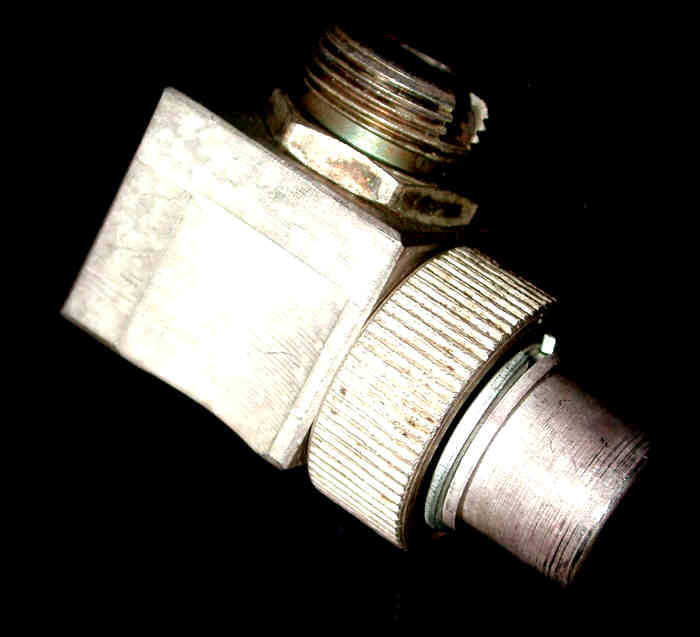

| CON2712 |
 |
Coaxial free plug (Female) Burndept Part no. 45945. Services Ref 5935-99-054-022 As used on Racal receivers such as the Racal RA17 series. |
New old stock | 19.00 |
| CON2723 |
 |

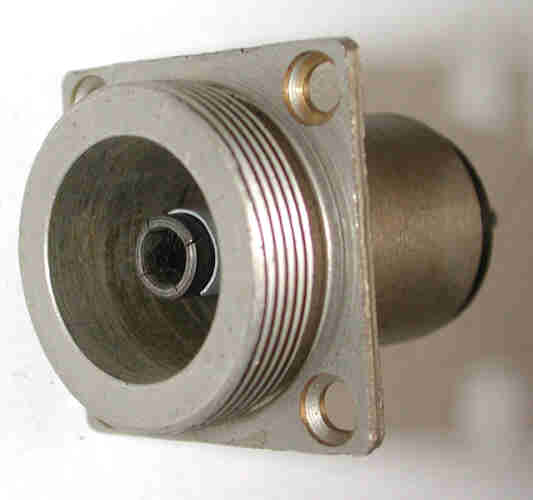

Coaxial Fixed Socket 2 only remaining | New old stock | 4.80 |
| CON2724 |
 |
Pye Coax - Coaxial Free
Coupler Plug-Plug to join two 10H/391 sockets. Can be used as chassis or free. |
Used | 4.00 |
| CON2725 |
 |

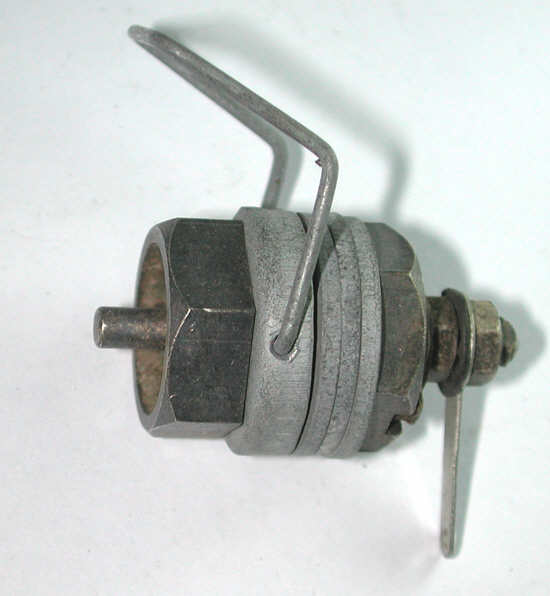

Coaxial Fixed Plug, 10H/528
- Pye Coax - Pye Connector Often Called "Pye Connectors" although also made by others. |
New old stock | 4.50 |
| CON2726 |
 |

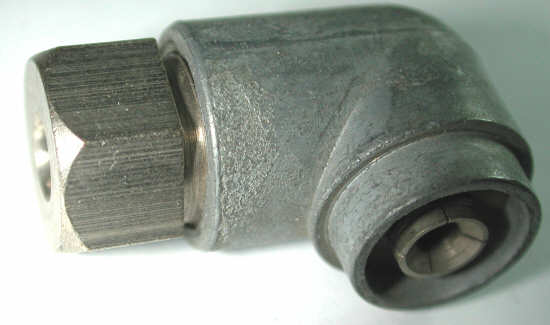

Pye Coax - Coaxial Free Socket to suit above
connectors. 10H/391 and series. Often Called "Pye Connectors" although also made by others. |
New old stock | 4.80 |
| CON2727 |
 |

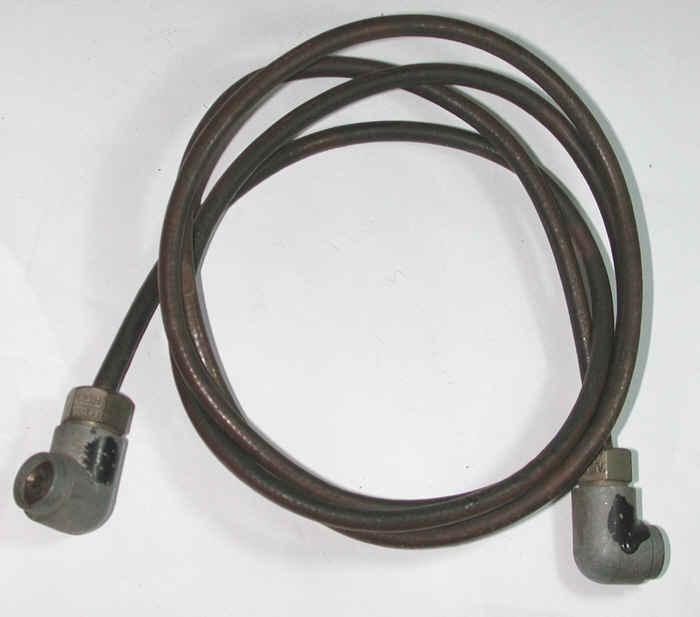

Lead, Pye to Pye One Only, tested. 1.5m approx. | Ex Equip | 15.00 |
| CON2728 |
 |

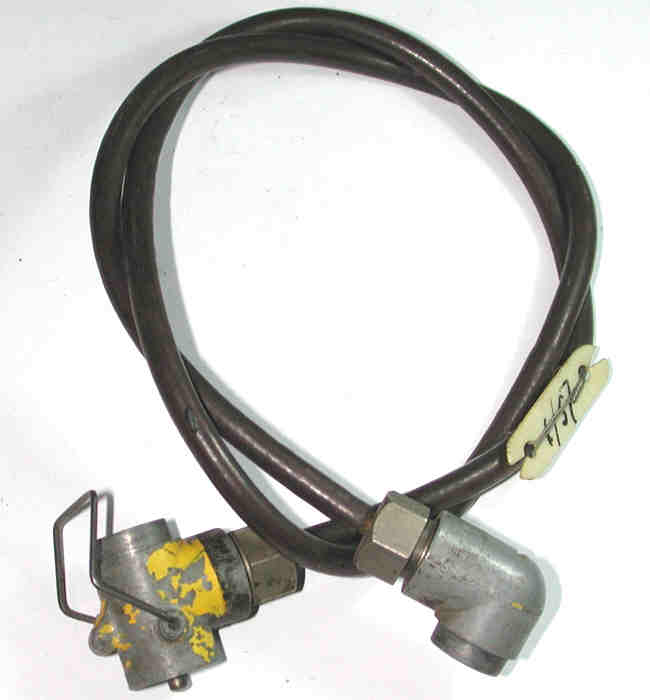

Lead, Pye to Pye T Connector One Only, tested. 0.6m approx. | Ex Equip | 15.00 |

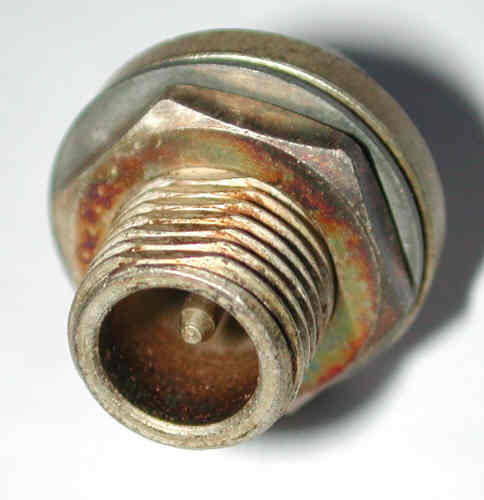

| CON2731 |
 |

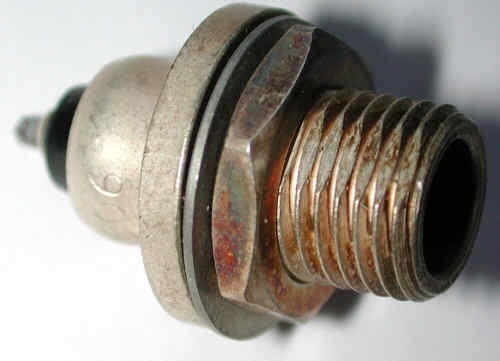

 Pattern
12. (PR12A) Coaxial
Fixed Plug 5935-99-011-9806.
Some tarnishing due to age. As used in Racal receivers RA17 etc. |
New old stock |
0.30 ea 10 for 2.50 |

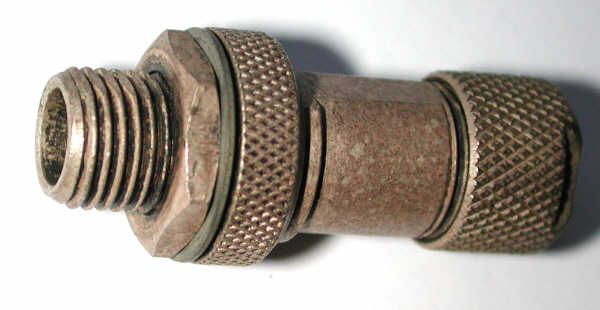

| CON2732 |
 |
Pattern 12. (PR12E) Coaxial Fixed/Coupler Plug Female Shell 5935-99-011-9808 Silver plated. Some tarnishing due to age and storage. Few only. |
New old stock | 3.00 |
| CON2738 |
  |

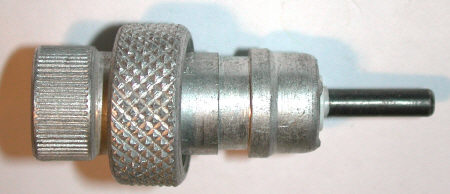

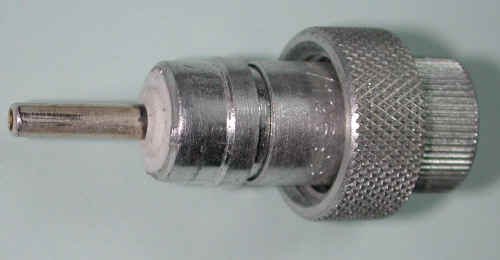

Coaxial type 10H/19698. Branded
F&E = Films and Equipment. Used in some military receivers and also as
a more robust connector in some professional audio-visual equipments.
Centre pins may be age tarnished.

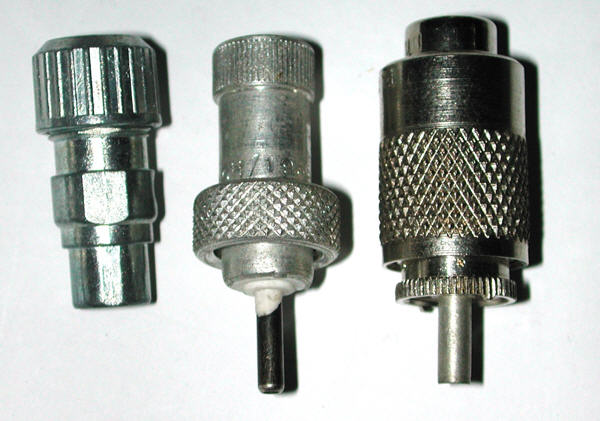

Comparison of "TV" CON2738 and "UHF" connectors. |
New old stock | 3.30 |
| CON2740 | . |
Miniature Coaxial Fixed
Bulkhead Socket. Belling & Lee
L1403/BS/Au. Socket at each end. Gold plated. Sealed bags. (2 only) Also 3 not Gold plated. |
New old stock | 3.30 |

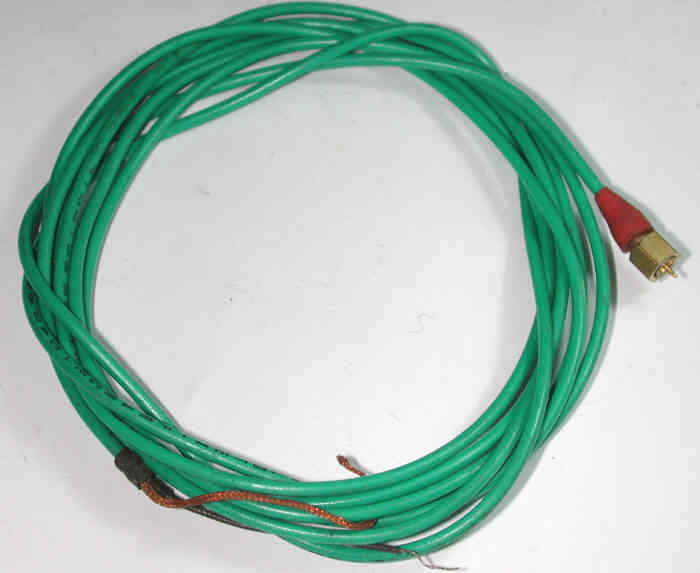

| CON2746 |
 |
Lead with Brüel
and Kjoer JP0012 or equivalent at one end and wires other. Cable approx 2mm diameter. Filotex See BNC section for similar miniature cable. |
Ex lab | 5.50 |
| CON2763 |
 |

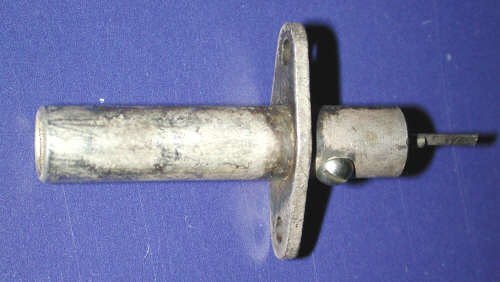

MUSA Connector Fixed. Panel Mounting as used by Post Office Telephone Exchanges. Some silver tarnish. | New old stock | 5.80 |
| CON2764 |
 |

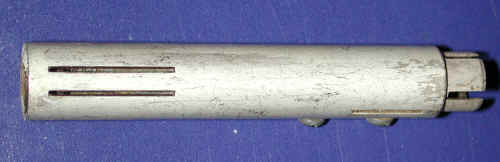

MUSA Connector Free. As used by Post Office Telephone Exchanges. Some silver tarnish. | New old stock | 4.80 |
| CON2765 |
 |

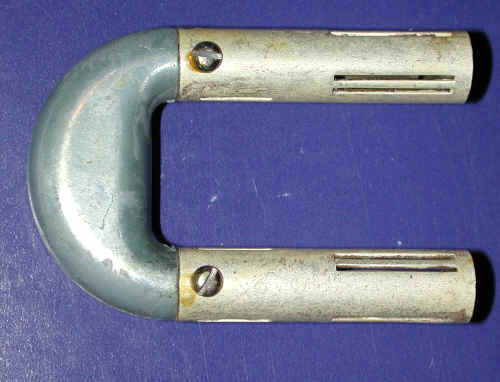

MUSA U Link. As used by BBC and Post Office Telephone Exchanges. Some silver tarnish. | New old stock | 4.80 |
| CON2775 |
 |
Plessey Coax Plug. 508-1.10980-002.
PLW/ZF. 7mm diameter, 25mm long with screw clamp and solder pin. Silver plated. Often used in multiway blocks. |
Unused, bagged | 3.80 |
|
Multiway Circular Connectors are now on their own page. HERE |
||||
|
